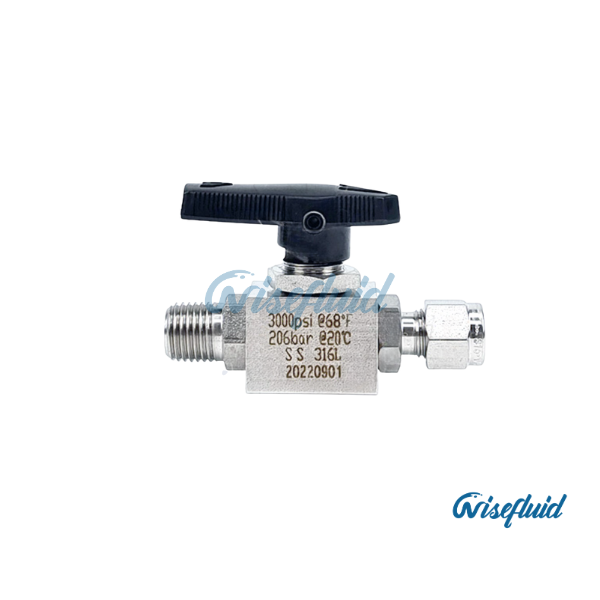

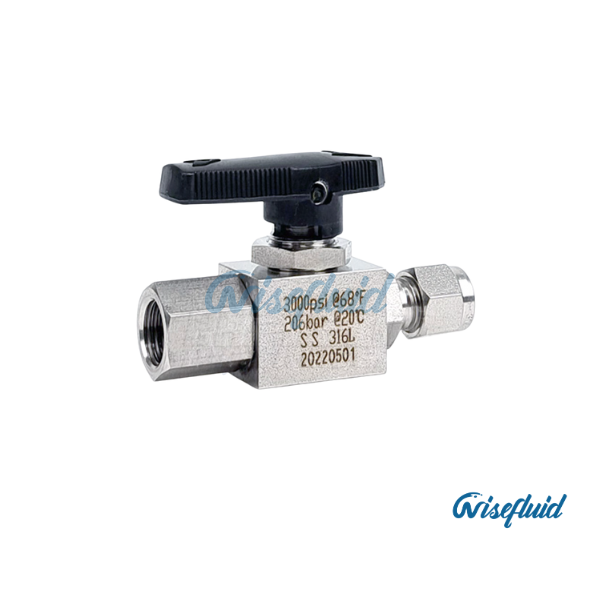

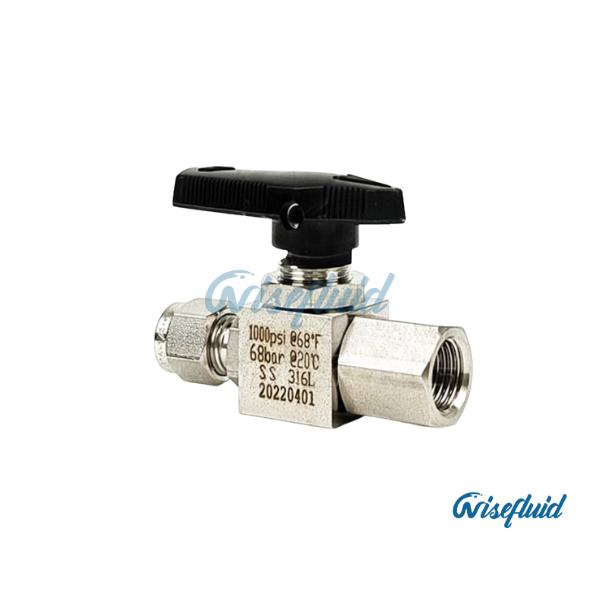

Square Body Split-Type Ball Valves
- Maximum Working Pressure: 1000-3000psi
- Specifications: Metric, Imperial (3 mm to 1")
- Connections: One end with internal/external thread, one end with ferrule fitting
- Material: 316L (ferrules and nuts silver-plated)
- Standard Sizes: 1/8"; 3/8"; 1/4"
The square-body split-type ball valve offers reliable performance for industrial and commercial applications. Crafted from corrosion-resistant 316L stainless steel with silver-plated ferrules and nuts, it ensures longevity in harsh environments. Designed for pressures range from 1000 psi to 3000psi , this valve features flexible connections: one end with internal/external threads and the other with a secure ferrule fitting, compatible with Metric (3mm–25mm) and Imperial (1/8"–1") systems. Its split-body design simplifies maintenance and installation, while standard sizes (1/8", 1/4", 3/8") suit diverse piping needs. Ideal for chemical, water, and gas systems, this valve combines precision engineering with robust durability for seamless flow control.
