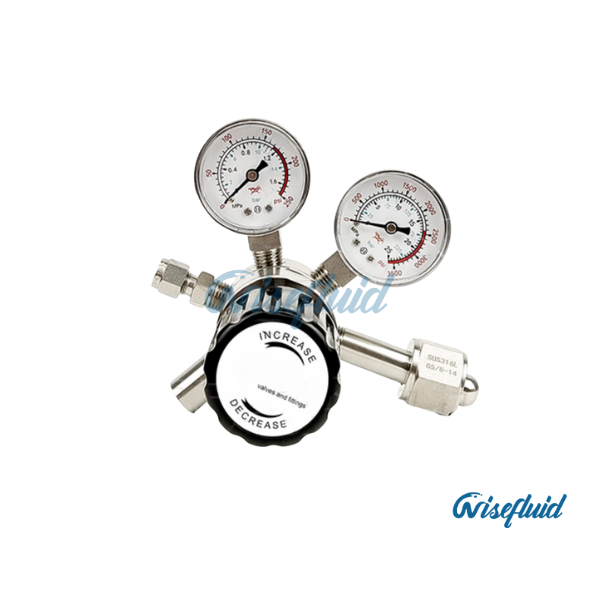

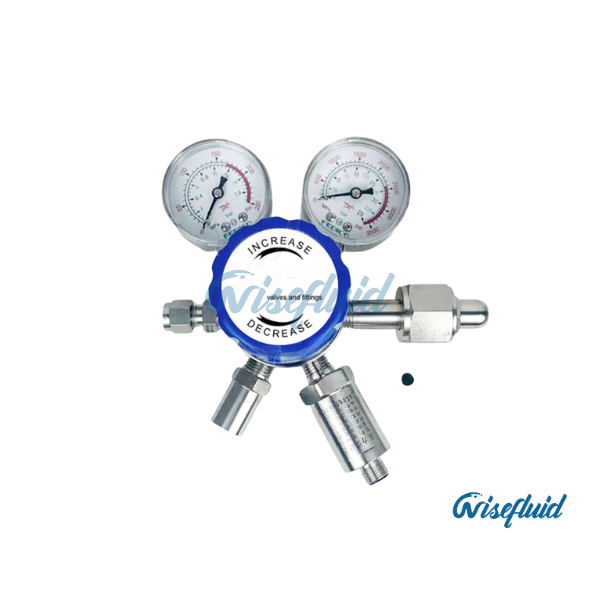

Single-Stage Gas Pressure Regulators(R11LQ)
- Valve Seat Material: PCTFE (Polychlorotrifluoroethylene)
- Diaphragm Material: NBR (Nitrile Rubber) / FKM (Fluorocarbon Rubber)
- Body Thread: 1/4″ NPTF
- Leak Rate: 2×10⁻⁸ atm·cc/sec He
- Cv Value: 0.06
- Operating Temperature: -40°C to 74°C
- Safety Pressure: 1.5× Maximum Input Pressure
- Input Pressure Ranges:0-6 MPa, 0-16 MPa, 0-25 MPa
- Output Pressure Ranges: 0-0.25 MPa, 0-1.0 MPa, 0-1.6 MPa，0-2.5 MPa
It delivers stable performance for laboratories and clean gas analysis applications, and semiconductor manufacturing.
