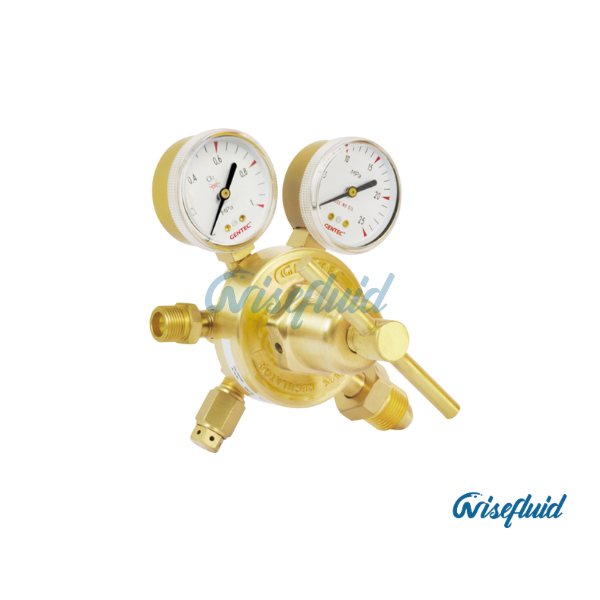

Medium-Flow Cylinder Regulators
- Single-stage pressure reduction design.
- Upper cover made of high-strength zinc alloy with a chrome-plated finish.
- 2" pressure gauge.
- 2-1/2" diaphragm.
- Built-in safety valve.
- Inlet pipe equipped with a sintered bronze filter screen.
- Certified by UL (Underwriters Laboratories) for safety compliance.
- Compact dimensions: 170x140x90mm.
- Maximum Output pressure：15Mpa
- Operating temperature：-20~60℃
- Weight:1.35kg
Crafted from high-quality brass, this pressure regulator undergoes 25,000-cycle fatigue testing, features a pressure resistance >60 MPa, and ensures long-lasting durability.
