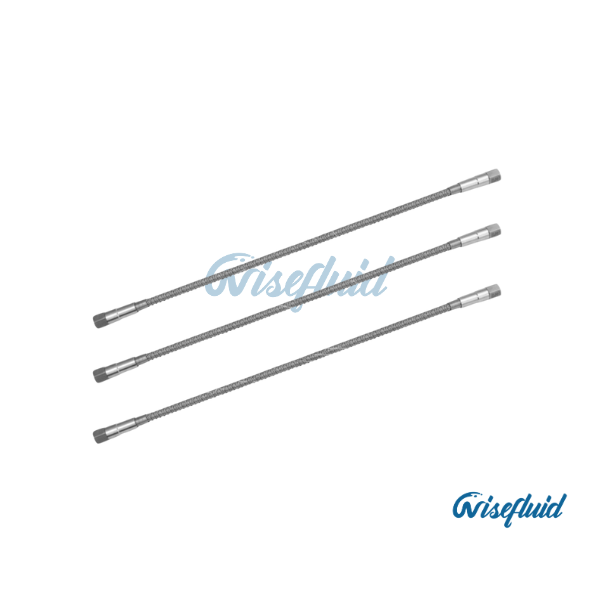

High-Purity Gas Hoses
- Temperature Range: -40°C to 180°C
- Working Pressure: 300 bar
- Cleanliness Grade: BA Class
- Performance Tests: Leakage test, hydrostatic strength test
- Length & Fittings: Fully customizable (length, connector types/specs)
Product Overview
Designed for gas cylinder filling, laboratory setups, and gas distribution panel connections, this high-purity metal hose ensures contamination-free gas transfer in critical applications.
Dual-Layer Structure
· Inner Tube: Metallic bellows (SUS316L/SUS304) for ultra-clean performance, zero adsorption residue.
· Outer Layer: Stainless steel braided mesh (SUS304) for enhanced durability and flexibility.
· Reinforced with stainless steel spring coils along the body and stainless steel end sleeves for anti-collapse protection.
Quality Assurance
· 100% pressure tested and degreased for contamination-free certification.
Material Composition
· Connectors: SUS316L, SUS304, or brass (HPb59-1)
· Inner Tube: SUS316L/SUS304
· Braided Mesh/Springs/Sleeves: SUS304
· Anti-Whipping Safety Rope: Rubber-coated steel wire.
