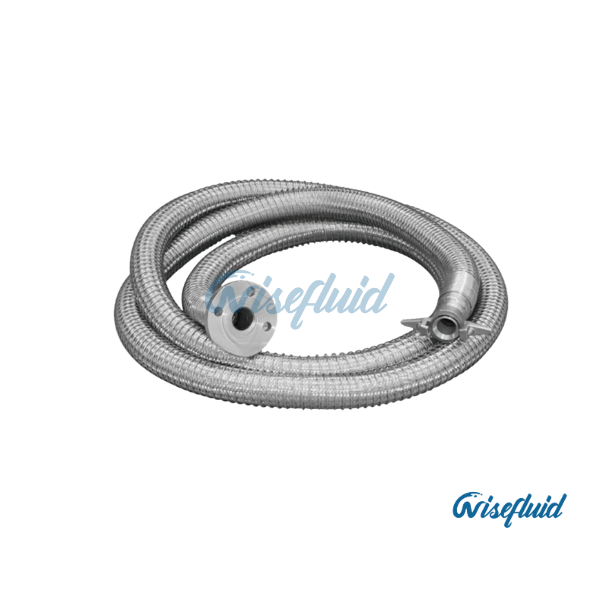

Cryogenic Liquid Metal Hoses

Temperature Range: -196°C to 180°C
Working Pressure: 16 bar
Performance Tests: Leakage test, hydrostatic strength test
Length & Fittings: Fully customizable (length, connector types/specs).

Product Overview
Designed for loading/unloading cryogenic liquids (e.g., liquid oxygen, nitrogen, argon) in tanker trucks, this hose ensures safe and efficient transfer of ultra-low-temperature fluids.

Dual-Layer Structure

· Inner Tube: Metallic bellows (SUS316L/SUS304) for superior flexibility and leak-proof performance.

· Outer Layer: Stainless steel braided mesh (SUS304) reinforced with full-length stainless steel springs to minimize abrasion during dragging, extending service life.

Quality Assurance

· 100% pressure tested and degreased for contamination-free operation.

Material Composition

· Connectors: SUS316L/SUS304

· Inner Tube: SUS316L/SUS304

· Braided Mesh/Springs/Sleeves: SUS304
