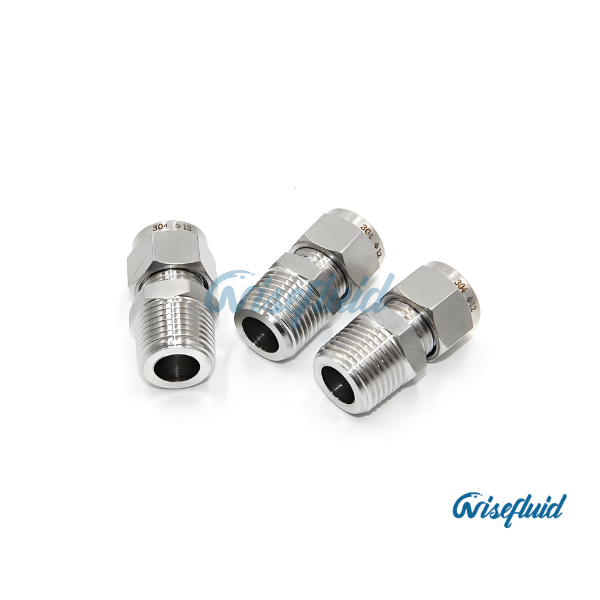

Compression Straight Connector

Pressure Rating: 2.5–16 MPa
Temperature Range: ≤150°C
Thread Sizes: 1/4", 1/8", 3/8", 1/2", 3/4", 1"
Ferrule Sizes (Tube OD): Ø6mm, Ø8mm, Ø10mm, Ø12mm, Ø14mm, Ø16mm, Ø18mm, Ø20mm, Ø22mm
Compatible Medium: Water, oil, gas, and certain corrosive liquids
Materials: 20# carbon steel, 1Cr18Ni9Ti, 304, 316, 316L stainless steel
Seamless precision tubes (OD: Ø6–Ø22mm)
Taper pipe threads: ZG, R, G, PT, NPT

Features:

Secure connection, high pressure resistance (2.5–16 MPa)

Superior sealing performance, excellent reusability

Easy installation and maintenance, reliable operation

Working Principle:

The connector seals by inserting the steel tube into the ferrule, tightening the nut to compress the ferrule, which bites into the tube for a leak-proof seal.

Applications: Refining, chemical processing, oil & gas, food, pharmaceuticals, instrumentation, and industrial systems requiring high-pressure, leak-tight fluid connections.
